Multi-Scan II

Multi-Scan II
MSC90510GB MSC90210GB
Complete Standalone System for single / two doors

Multi-Scan II is a complete standalone passive transponder access control system for up to two door applications. It is ideal for blocks of flats, council houses, small offices and doctor’s surgeries.		Multi-Scan II Controller
MSC90510GB	Multi-Scan II Controller - 500 user (no Terminals included)
MSC90210GB	Multi-Scan II Controller - 2000 user (no Terminals included)
MIT90010GB	Micro-Imp Reader Module in ABS plastic housing, fully potted with 2 meter cable.
MIT20110GB	Mini-Imp Reader Module - printed board assembly potted.
MIT90110GB	Mini-Imp Reader Module with stainless steel front plate and polycarbonate coil insert.
MIT90210GB	Mini-Imp Reader Module with stainless steel front plate and polycarbonate coil insert plus stainless steel housing.
MSR90000GB	Multi-Scan II Remote Relay with door open sensing and ‘Request to Enter’ input.

Features


Micro-Imp (plastic housing, fully potted)	Mini-Imp 1 (printed board assembly potted)	Mini-Imp 2 (stainless steel front plate)	Mini-Imp 3 (stainless steel housing)

Easy installation and setup.
Controller supports multiple master tags.
Passive tags assigned to users can be allowed access independently on each door. Access through a door is not allowed unless a tag is authorized.
Three levels of tags supported (Installer, Master and User).
Secure facility simplifies blanket user tag denial.
Alarm LED and Alarm Relay on Controller to indicate alarm conditions.
Controller supports a Power Saving Relay which can be made to activate when the last person is leaving the premises - to switch off lights, air-conditioning, etc. This relay may also be used to arm an alarm system.

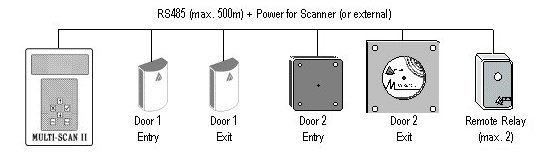

Readers and Remote Relays may be located up to 500 m away from the Controller.
Controller supports 4 inputs:

Controller RS232 port for on-line transaction reporting to Host System or alternatively supports connection to a serial printer for on-line logging of tags code numbers (Time information is not printed - the Controller does not keep time) and Database may be transferred from one unit to another via the RS232 Port, allowing easy swap-out of faulty units.

Specifications for Controller

Processor:	16 MHz 80C251 CPU
Power Requirements:	7 V to 14 V AC, 9 V to 16 V DC 500 mA (max)
Size:	L = 220 mm, B = 120 mm, H = 53 mm
Inputs:	4 x Dry contact inputs, protected to 80 V (Transient) -Request to open push button 1 - Request to open push button 2 - Doors unlock input - Reader blocking input All inputs activate on closed contact.
Relay Outputs:	- Door 1 - Door 2 - Power saving (may also be used to arm an alarm system) - Alarm relay
RS485 Port:	Communication to readers at 19200 baud, maximum 500 m cable length.
RS232 Port:	Communication to Host PC or Printer for on-line reporting of transactions.
Scan Channel:	Controller has an on-board 125 kHz scanner channel for entering tags into the system.
Reading Distances:	Approximately 60 mm to 120 mm (tag dependent).
Display:	16 x 2 character LCD
LED Indicators:	- Run LED - Edit LED - Power Save LED - Alarm LED
Keyboard:	6 keys for programming purposes
Environmental:	Temperature Range: -25°C to 70°C Humidity Range: 0 - 95% non condensing
Positioning:	The unit may be mounted on any material even metal with no effect on performance. Screw holes are provided in reader base.
Buzzer:	Piezoelectric buzzer

Specifications for Readers

Two types of readers available:	Micro-Imp Reader (IP66) Mini-Imp Reader 1, 2 and 3 (IP66)
Processor:	4 MHz Microchip PIC Processor.
Power requirements:	DC only, 9 V to 16 V, 75 mA maximum
Size:	Micro-Imp: 58 mm x 42.5 mm x 17 mm Mini-Imp 1: 68 mm x 68 mm x 12 mm Mini-Imp 2: 100 mm x 100 mm x 20 mm Mini-Imp 3: 104 mm x 104 mm x 46 mm
RS485 Port:	for communicating with Controller - 19200 Baud.
Scan Channel:	one, 125 kHz
Reading Distance:	Micro-Imp : approx. 40 mm Mini-Imp : approx. 60 mm
Status indicators:	Single bicolor LED, indicating Access Allowed/Denied.
Environment:	Temperature: -25°C to +70°C Humidity: 0-95% non-condensing
Positioning:	Readers should be positioned at least 500 mm away from each other.
